可调谐滤波器

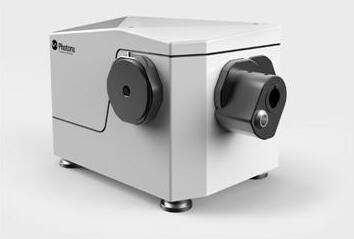

激光线宽可调滤波器
无与伦比的效率和带外抑制提供由我们独特的光学过滤技术,非常适合可调发射源在荧光和拉曼光谱。
主要特点:
·效率高达60%
·高带外抑制
·宽调谐范围
·自由空间和光纤耦合
·用户友好的控制软件
·可用选项和配件
详细规格:
|
CONTRAST VIS |
CONTRAST SWIR |
NEW: CONTRAST X |
SPECTRAL RANGE |
400 - 1000 nm |
1000 - 2300 nm |
where X represents |
BANDWIDTH (FWHM) |
1.0 nm - 2.5 nm |
2.0 nm - 5 nm |
High resolution: |
OUT OF BAND REJECTION |
< -60 dB @ ± 40 nm |
< -60 dB @ ± 80 nm |
depends on the bandwidth |
MAXIMUM INPUT AVERAGE POWER |
HP8, HP20 |
HP8, HP20 |
HP4 |
PEAK EFFICIENCY |
typically around 65% |
||
OPTICAL DENSITY (OD) |
> OD6 (measured at 1064 nm) |
TBD |
|
DAMAGE THRESHOLD |
< 5 GW/cm2 peak power @ 1064 nm, 8 ns |
||
INPUT APERTURE DIAMETER |
5 mm |
||
INPUT BEAM DIVERGENCE REQUIREMENT |
< 0.45 mrad |
||
WAVELENGTH RESOLUTION |
FWHM / 8 |
||
POINTING STABILITY |
< 1mm lateral displacement @ 1 m from filter |
||
SCANNING SPEED |
35 ms stabilization time for 0.1 nm step, 45 ms stabilization time for 0.2 nm step, 55 ms stabilization time for 1 nm step, 60 ms stabilization time for 2 nm step, 65 ms stabilization time for 5 nm step, 70 ms stabilization time for 10 nm step, |
||
OPERATING SYSTEM (OS) |
Windows Vista (32 & 64 bits) Windows 7 (32 & 64 bits) Windows 8 (32 & 64 bits) |
||
SOFTWARE |
PHySpec™ included (SDK available) |
||
COMPUTER CONNECTION |
USB 2.0 (compatible 1.1) |
||
DIMENSIONS (L x W x H) |
9'' x 6.3'' x 6.7'' 23 cm x 16 cm x 17 cm |
||
OPERATING TEMPERATURE |
5 to 40°C |
||
STORAGE TEMPERATURE |
0 to 50°C |
||
POWER SUPPLY |
100 - 240 V, 50 - 60 Hz |
||
OPTIONS & ACCESSORIES |
|||
ENHANCED SWIR |
N/A |
* up to 2500 nm |
|
FIBEROPTIC INPUT/OUTPUT |
An X-Y-Z translation adjustment allows coupling optimization. The FC APC is available with the following fibers: |
||
HARMONIC FILTER |
Blocks the harmonics coming from the region |
Blocks the harmonics coming from the region |
Filter chosen according to spectral range |
BACKGROUND SUPPRESSOR |
Removes unwanted reflections of light coming from the inside of the LLTF |
||
ALIGNMENT KIT (FOR FREE SPACE) |
In free-space (input/output) configuration, the alignment kit allows the user to rapidly find the correct alignment |
||
NOTE: Photon etc. reserves the right to change the design and specification of the product at any time, without notice. |
附件:
FIBERED OUTPUT:
HARMONIC FILTER:
BACKGROUND SUPPRESSOR:
ALIGNMENT KIT (FOR FREE-SPACE):
