高速光电探测器

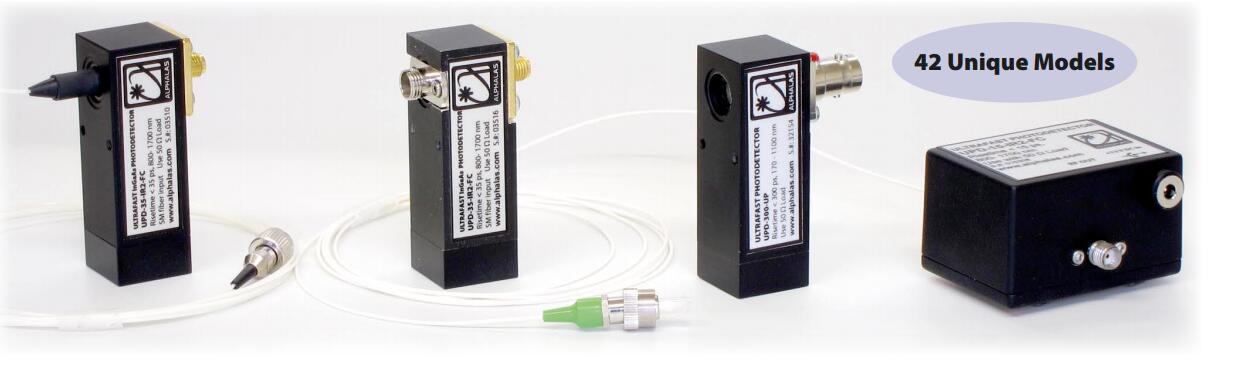

ALPHLAS UPD系列自由空间入射超快光电探测器系列最适合用于从直流到25GHz的空间光波形的测量。多种产品可选择，提供检测最短为15ps上升时间的光脉冲信号，覆盖从170至2600nm的光谱范围。所有探测器都由紧凑坚实的过氧极化铝外壳封装，供电方式可以采用电池或外接电源。是唯一可提供从170到1100 nm扩展到紫外光谱范围高速硅探测器的商业产品。另一种类型独特的紫外线敏感的InGaAs 探测器，可用于检测从350到1700纳米范围内的激光脉冲，因此具有最宽的光谱范围和最高的响应速度。
完美的阻抗匹配和最先进的微波技术，确保测量的脉冲波形的保真度。用户可以自由使用50Ω的匹配电阻，进行最高响应速度的检测。或为获得大的信号响应曲线，加入高阻抗负载。保证了UPD产品为不同的应用提供最大的灵活性。 结合BBA系列宽带高增益放大器，高速光探测器对于取代昂贵和繁琐的雪崩光电二极管不失是一个极好的选择。UPD的系列高速光电探测器是激光和光子学研究的不可缺少的工具。
|
产品特色 |
产品应用 |
|
· 超高速下工作 · 上升时间:最低至15 ps · 带宽: 最高达25 GHz · 光谱范围: 170 - 2600 nm (UV to IR) · 紧凑的设计 · 使用电池或者外部供电 · 自由空间光或者尾纤接口 |

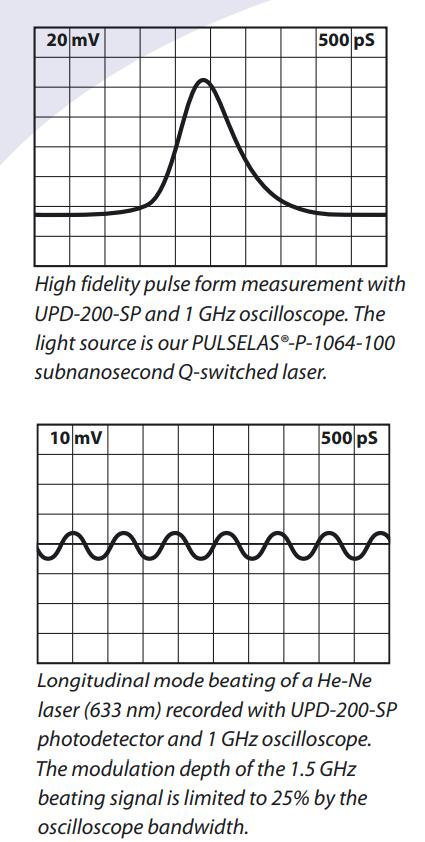

· 脉冲波形的测量 · 脉冲宽度的测量 · 精密时钟同步 · 模拍频的监控 · 外差侧量 |
| Photodetector Model |
Rise Time (ps) |
Band- width (GHz) |
Spectral Range (nm) |
Quantum Efficiency @ Peak |
Sensitive Area (Dia. µm/mm2) |
Noise Equiv. Power (W/√Hz) |
Dark Current (nA) |
Material | Optical Input / Window Type 1) |
RF Output Connec- tor |
|---|---|---|---|---|---|---|---|---|---|---|
| UPD-15-IR2-FC | < 15 | > 25 | 800 - 1700 | 75% | Fiber, 9 µm | 1.0 × 10-15 | 0.1 | InGaAs | Fiber w. FC/APC 5) | SMA |

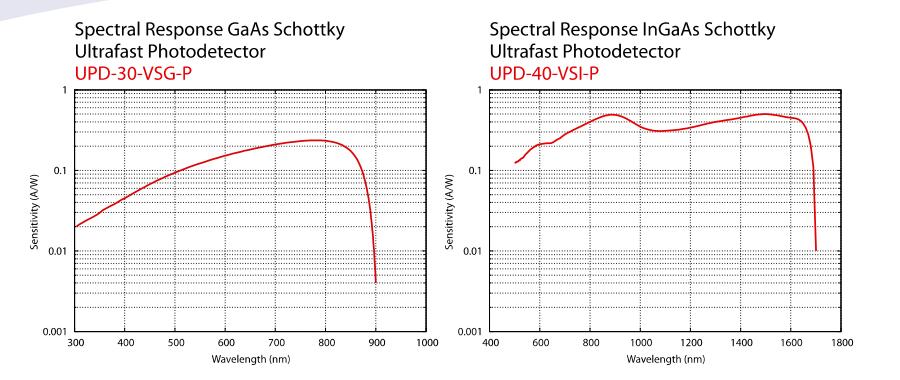

| UPD-30-VSG-P | < 30 | > 10 | 320 - 900 | 40% | 200x200/0.04 | 3.0 × 10-15 | 0.1 | GaAs | Polished, glass | SMA |

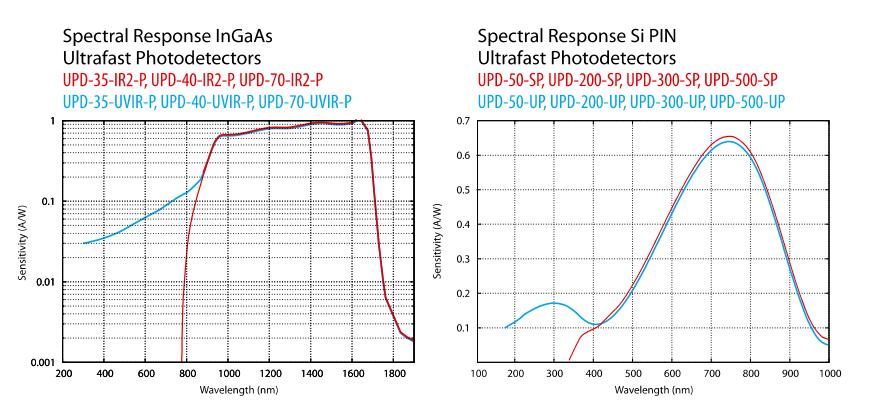

| UPD-35-IR2-P | < 35 | > 10 | 800 - 1700 | 80% | 55/0.0024 | 1.0 × 10-15 | 0.3 | InGaAs | Polished, glass | SMA |
| UPD-35-IR2-D | < 35 | > 10 | 800 - 1700 | 80% | 55/0.0024 | 1.0 × 10-15 | 0.3 | InGaAs | Diffuse, quartz | SMA |
| UPD-35-IR2-FR | < 35 | > 10 | 800 - 1700 | 80% | 55/0.0024 | 1.0 × 10-15 | 0.3 | InGaAs | FC/PC receptacle 5) | SMA |

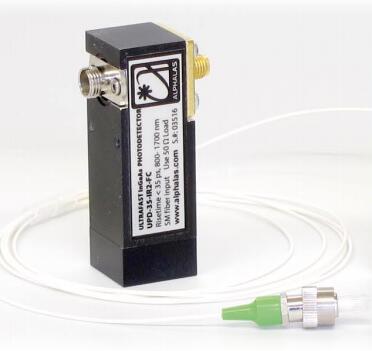

| UPD-35-IR2-FC | < 35 | > 10 | 800 - 1700 | 80% | Fiber, 9 µm | 1.0 × 10-15 | 0.3 | InGaAs | Fiber w. FC/APC 5) | SMA |
| UPD-35-UVIR-P | < 35 | > 10 | 350 - 1700 | 80% | 55/0.0024 | 1.0 × 10-15 | 0.3 | InGaAs 4) | Polished, MgF2 | SMA |
| UPD-35-UVIR-D | < 35 | > 10 | 350 - 1700 | 80% | 55/0.0024 | 1.0 × 10-15 | 0.3 | InGaAs 4) | Diffuse, quartz | SMA |
| UPD-40-VSI-P | < 40 | > 8.5 | 500 - 1690 | 40% | 200x200/0.04 | 3.0 × 10-10 | 5000 | InGaAs | Polished, glass | SMA |
| UPD-40-IR2-P | < 40 | > 8.5 | 800 - 1700 | 80% | 60/0.0028 | 1.1 × 10-15 | 0.5 | InGaAs | Polished, glass | SMA |
| UPD-40-IR2-D | < 40 | > 8.5 | 800 - 1700 | 80% | 60/0.0028 | 1.1 × 10-15 | 0.5 | InGaAs | Diffuse, quartz | SMA |
| UPD-40-IR2-FR | < 40 | > 8.5 | 800 - 1700 | 80% | 60/0.0028 | 1.1 × 10-15 | 0.5 | InGaAs | FC/PC receptacle 5) | SMA |
| UPD-40-IR2-FC | < 40 | > 8.5 | 800 - 1700 | 80% | Fiber, 9 µm | 1.1 × 10-15 | 0.5 | InGaAs | Fiber w. FC/APC 5) | SMA |
| UPD-40-UVIR-P | < 40 | > 8.5 | 350 - 1700 | 80% | 60/0.0028 | 1.1 × 10-15 | 0.5 | InGaAs 4) | Polished, MgF2 | SMA |
| UPD-40-UVIR-D | < 40 | > 8.5 | 350 - 1700 | 80% | 60/0.0028 | 1.1 × 10-15 | 0.5 | InGaAs 4) | Diffuse, quartz | SMA |
| UPD-50-SP | < 50 | > 7.0 | 320 - 1100 | 45% | 100/0.0079 | 1.2 × 10-15 | 0.001 | Si | Polished, glass | SMA |
| UPD-50-SD | < 50 | > 7.0 | 320 - 1100 | 45% | 100/0.0079 | 1.2 × 10-15 | 0.001 | Si | Diffuse, quartz | SMA |
| UPD-50-UP | < 50 | > 7.0 | 170 - 1100 | 45% | 100/0.0079 | 1.2 × 10-15 | 0.001 | Si 4) | Polished, MgF2 | SMA |
| UPD-50-UD | < 50 | > 7.0 | 170 - 1100 | 45% | 100/0.0079 | 1.2 × 10-15 | 0.001 | Si 4) | Diffuse, quartz | SMA |
| UPD-70-IR2-P | < 70 | > 5.0 | 800 - 1700 | 80% | 80/0.005 | 2.0 × 10-15 | 0.8 | InGaAs | Polished, glass | SMA |
| UPD-70-IR2-D | < 70 | > 5.0 | 800 - 1700 | 80% | 80/0.005 | 2.0 × 10-15 | 0.8 | InGaAs | Diffuse, quartz | SMA |
| UPD-70-IR2-FR | < 70 | > 5.0 | 800 - 1700 | 80% | 80/0.005 | 2.0 × 10-15 | 0.8 | InGaAs | FC/PC receptacle 5) | SMA |
| UPD-70-IR2-FC | < 70 | > 5.0 | 800 - 1700 | 80% | Fiber, 9 µm | 2.0 × 10-15 | 0.8 | InGaAs | Fiber w. FC/APC 5) | SMA |
| UPD-70-UVIR-P | < 70 | > 5.0 | 350 - 1700 | 80% | 80/0.005 | 2.0 × 10-15 | 0.8 | InGaAs 4) | Polished, MgF2 | SMA |
| UPD-70-UVIR-D | < 70 | > 5.0 | 350 - 1700 | 80% | 80/0.005 | 2.0 × 10-15 | 0.8 | InGaAs 4) | Diffuse, quartz | SMA |

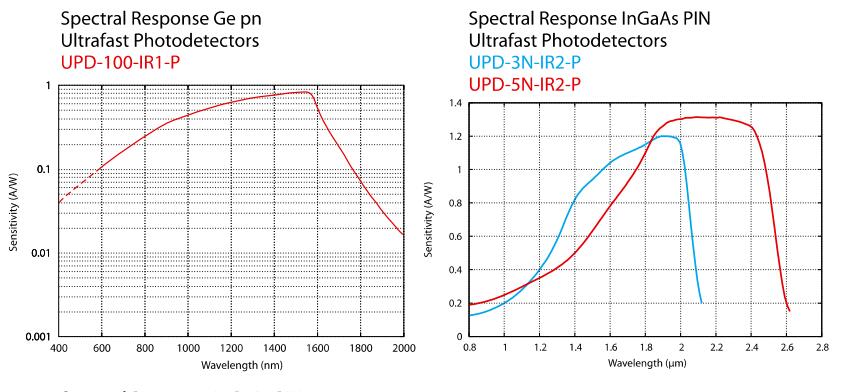

| UPD-100-IR1-P | < 100 | > 3.0 | 400 - 2000 | 80% | 80/0.005 | 3.0 × 10-13 | 700 | Ge | Polished, glass | SMA |
| UPD-200-SP | < 175 | > 2.0 | 320 - 1100 | 85% | 400/0.126 | 1.5 × 10-15 | 0.001 | Si | Polished, glass | BNC |
| UPD-200-SD | < 175 | > 2.0 | 320 - 1100 | 85% | 400/0.126 | 1.5 × 10-15 | 0.001 | Si | Diffuse, quartz | BNC |
| UPD-200-UP | < 175 | > 2.0 | 170 - 1100 | 85% | 400/0.126 | 1.5 × 10-15 | 0.001 | Si 4) | Polished, MgF2 | BNC |
| UPD-200-UD | < 175 | > 2.0 | 170 - 1100 | 85% | 400/0.126 | 1.5 × 10-15 | 0.001 | Si 4) | Diffuse, quartz | BNC |
| UPD-300-SP | < 300 | > 1.0 | 320 - 1100 | 90% | 600/0.283 | 3.0 × 10-15 | 0.01 | Si | Polished, glass | BNC |
| UPD-300-SD | < 300 | > 1.0 | 320 - 1100 | 90% | 600/0.283 | 3.0 × 10-15 | 0.01 | Si | Diffuse, quartz | BNC |
| UPD-300-UP | < 300 | > 1.0 | 170 - 1100 | 90% | 600/0.283 | 3.0 × 10-15 | 0.01 | Si 4) | Polished, MgF2 | BNC |
| UPD-300-UD | < 300 | > 1.0 | 170 - 1100 | 90% | 600/0.283 | 3.0 × 10-15 | 0.01 | Si 4) | Diffuse, quartz | BNC |
| UPD-500-SP | < 500 | > 0.6 | 320 - 1100 | 90% | 800/0.5 | 3.5 × 10-15 | 0.01 | Si | Polished, glass | BNC |
| UPD-500-SD | < 500 | > 0.6 | 320 - 1100 | 90% | 800/0.5 | 3.5 × 10-15 | 0.01 | Si | Diffuse, quartz | BNC |
| UPD-500-UP | < 500 | > 0.6 | 170 - 1100 | 90% | 800/0.5 | 3.5 × 10-15 | 0.01 | Si 4) | Polished, MgF2 | BNC |
| UPD-500-UD | < 500 | > 0.6 | 170 - 1100 | 90% | 800/0.5 | 3.5 × 10-15 | 0.01 | Si 4) | Diffuse, quartz | BNC |
| UPD-3N-IR2-P | < 150 6) | > 0.4 6) | 800 - 2100 | 75% | 300/0.07 | 1.5 × 10-13 | 90 | InGaAs | Polished, glass | BNC |
| UPD-5N-IR2-P | < 200 6) | > 0.3 6) | 800 - 2600 | 70% | 300/0.07 | 7.0 × 10-13 | 2000 | InGaAs | Polished, glass | BNC |

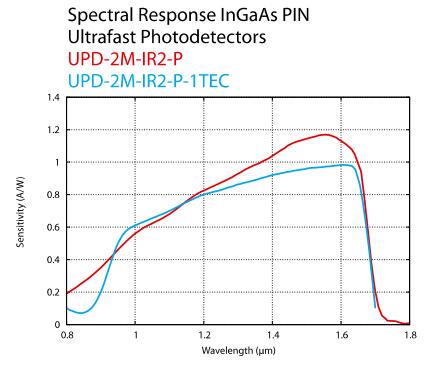

| UPD-2M-IR2-P | < 75000 | > 0.004 | 900 - 1700 | 80% | 2000/3.14 | 4.0 × 10-14 | 5 | InGaAs | Polished, glass | BNC |
| UPD-2M-IR2-P-1TEC 3) | < 75000 | > 0.004 | 900 - 1700 | 75% | 2000/3.14 | 1.0 × 10-14 | 0.3 | InGaAs | Polished, glass | BNC |
Notes:
1) The diffuse window reduces the positioning accuracy requirements and increases the damage threshold at the cost of a reduced sensitivity by a factor of approx. three to five. Recommended for high peak power lasers only.
2) This model has negative output. All other models have positive output by default but may be ordered with negative output if required.
3) With TEC cooling module, non-standard housing.
4) Modified material with increased blue / UV sensitivity.
5) Not compatible with the optional filter holder.
6) Greatly improved performance.
